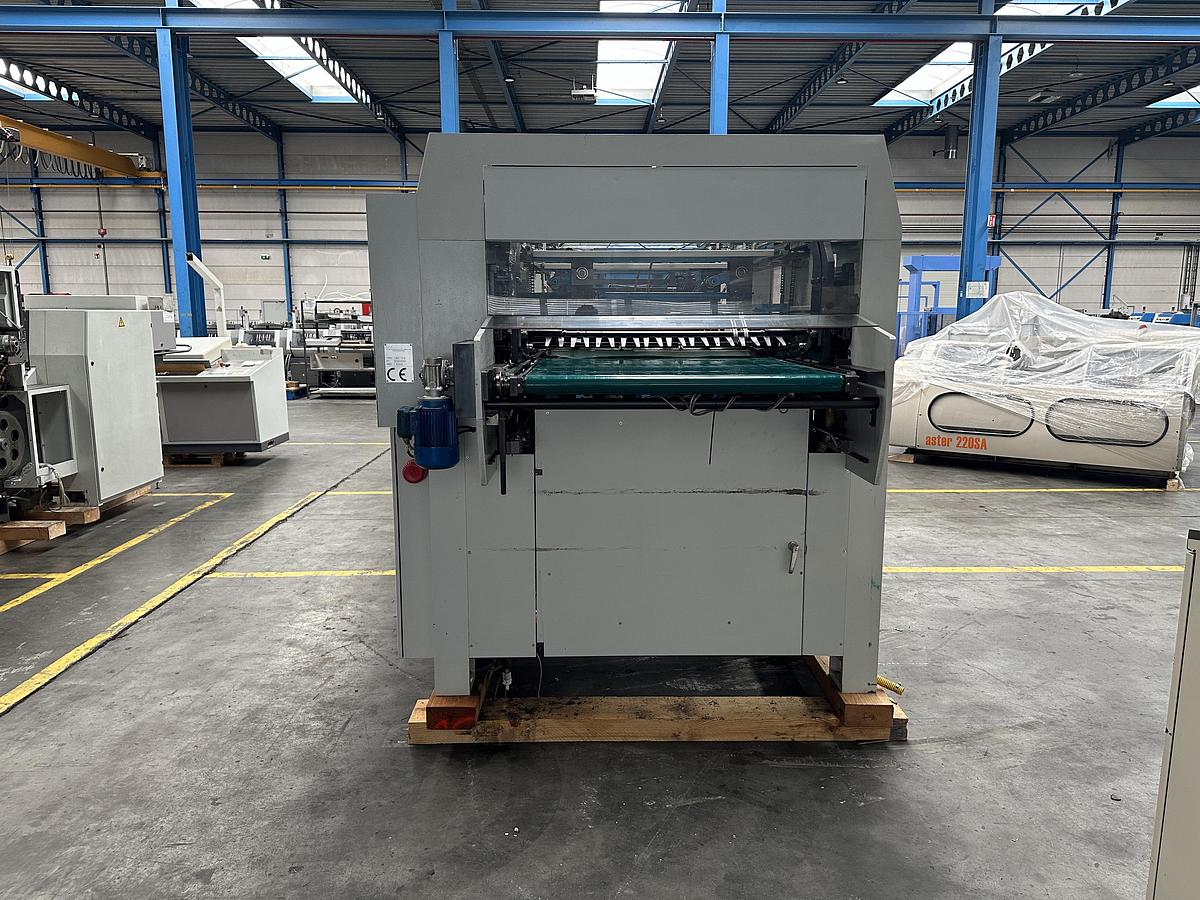

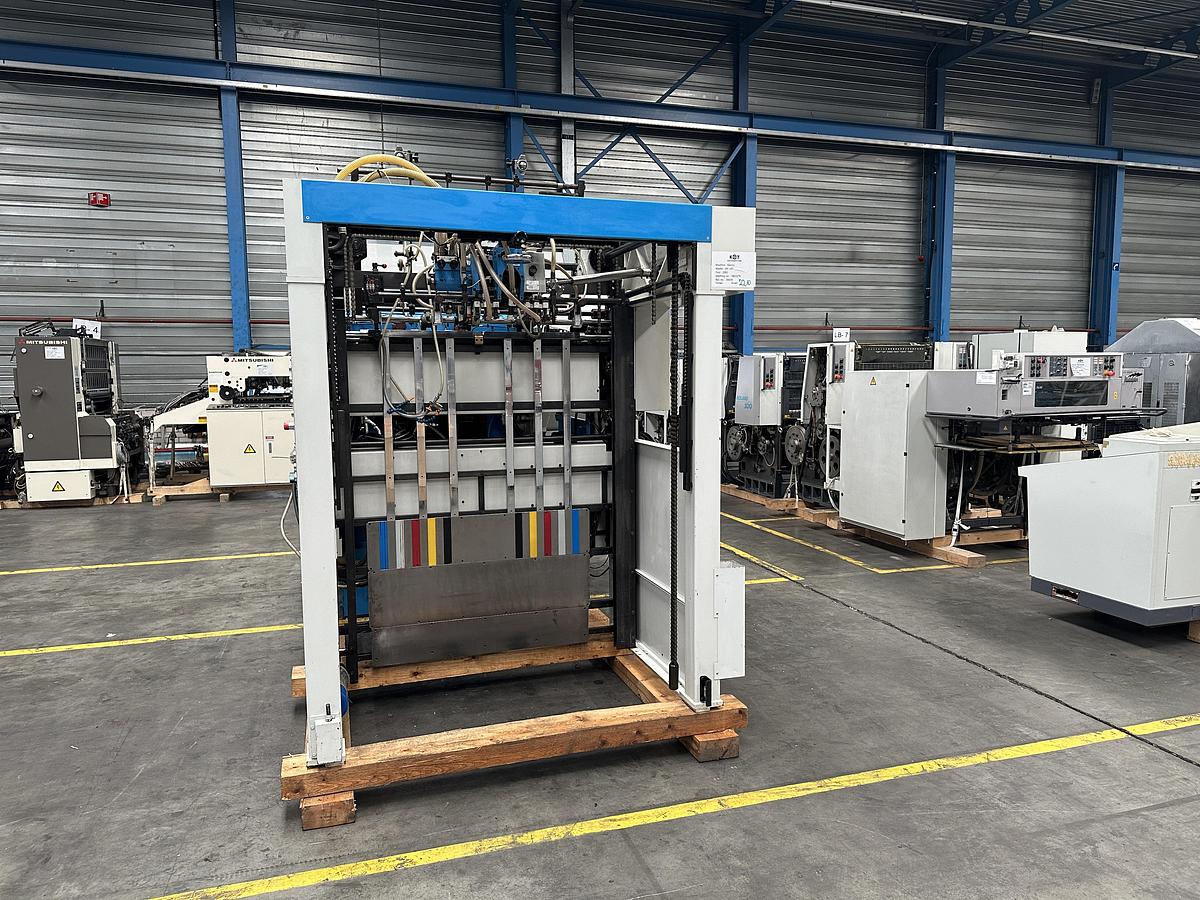

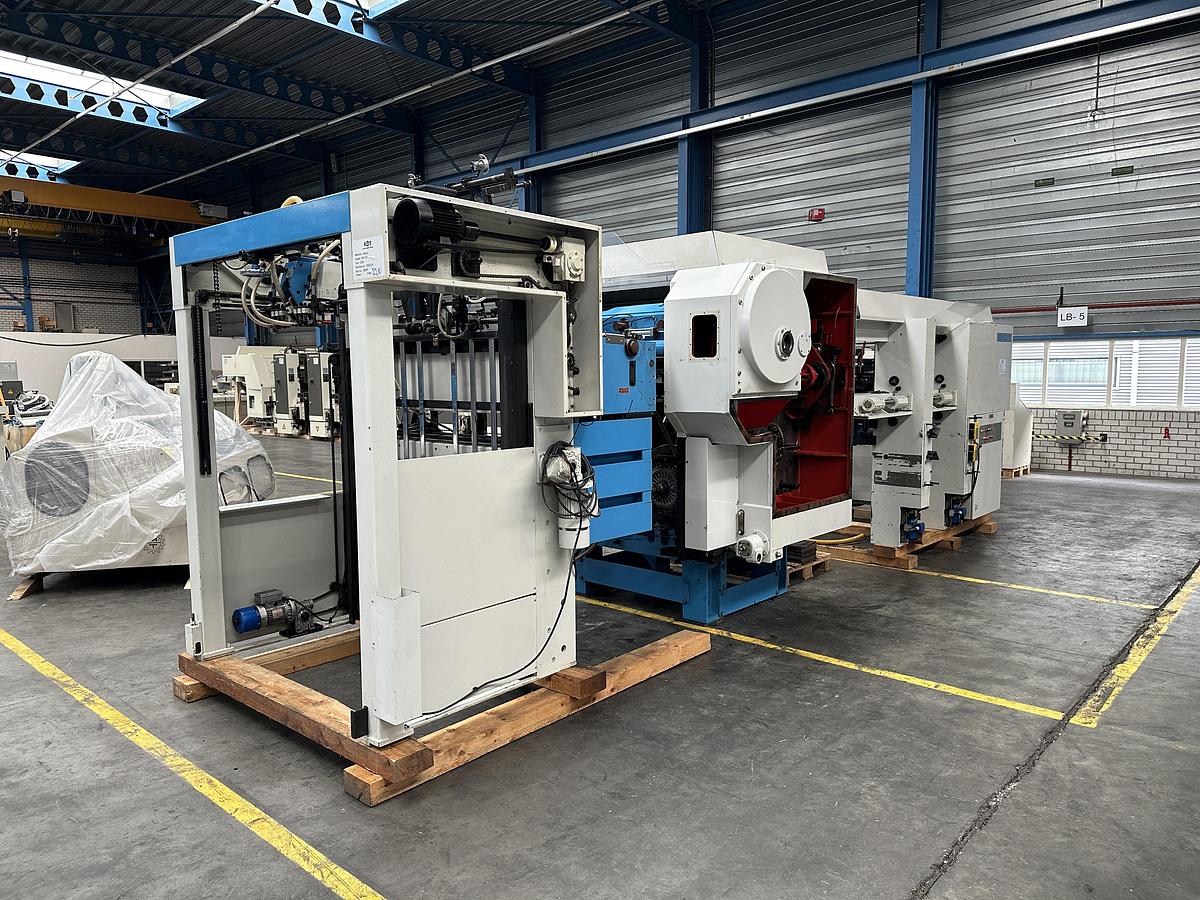

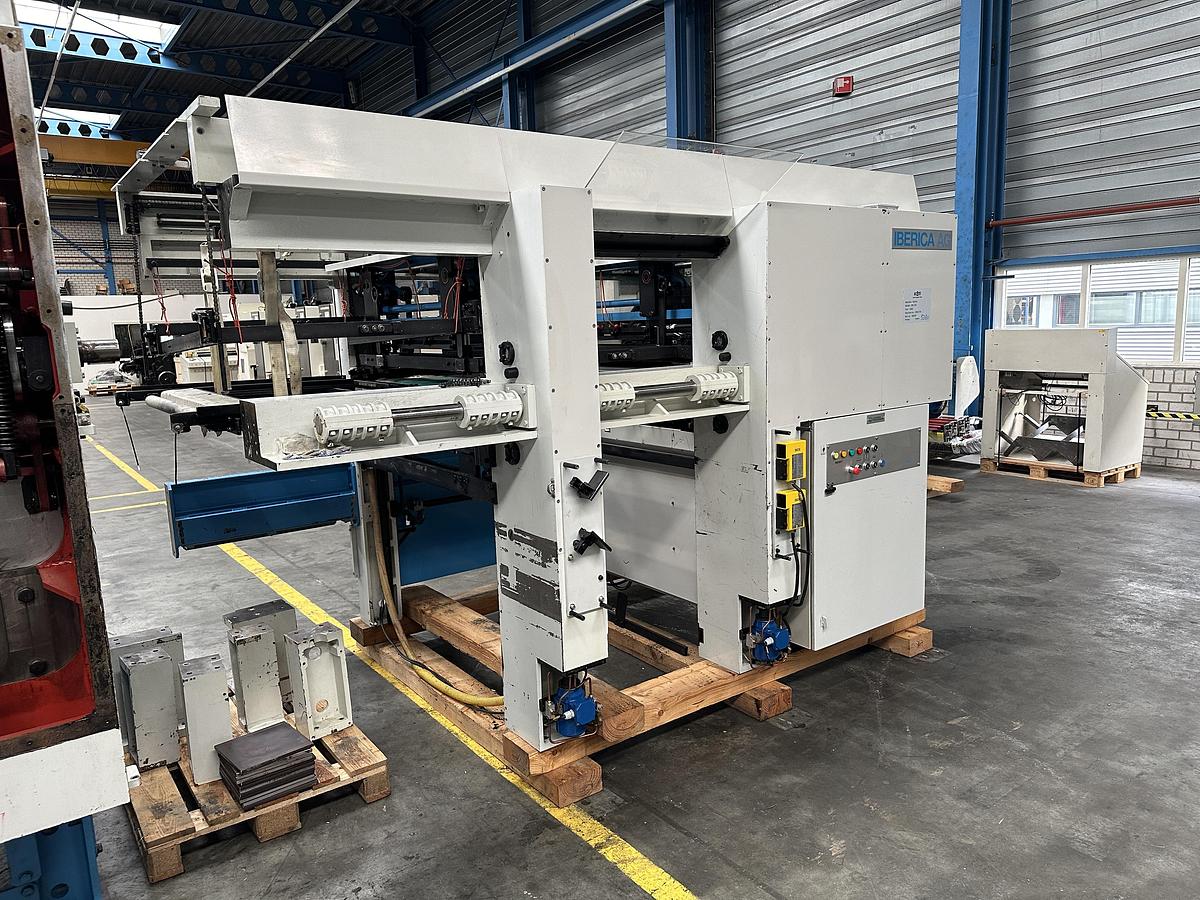

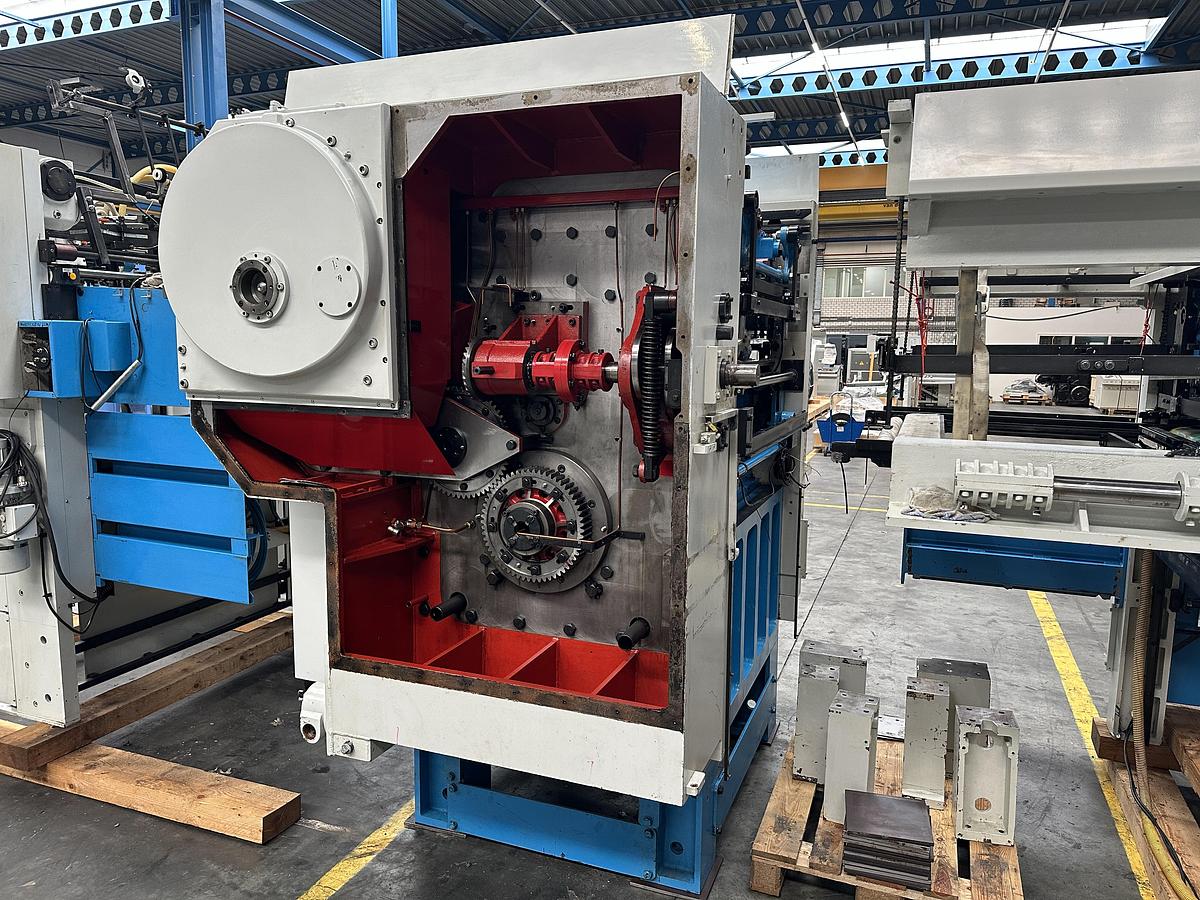

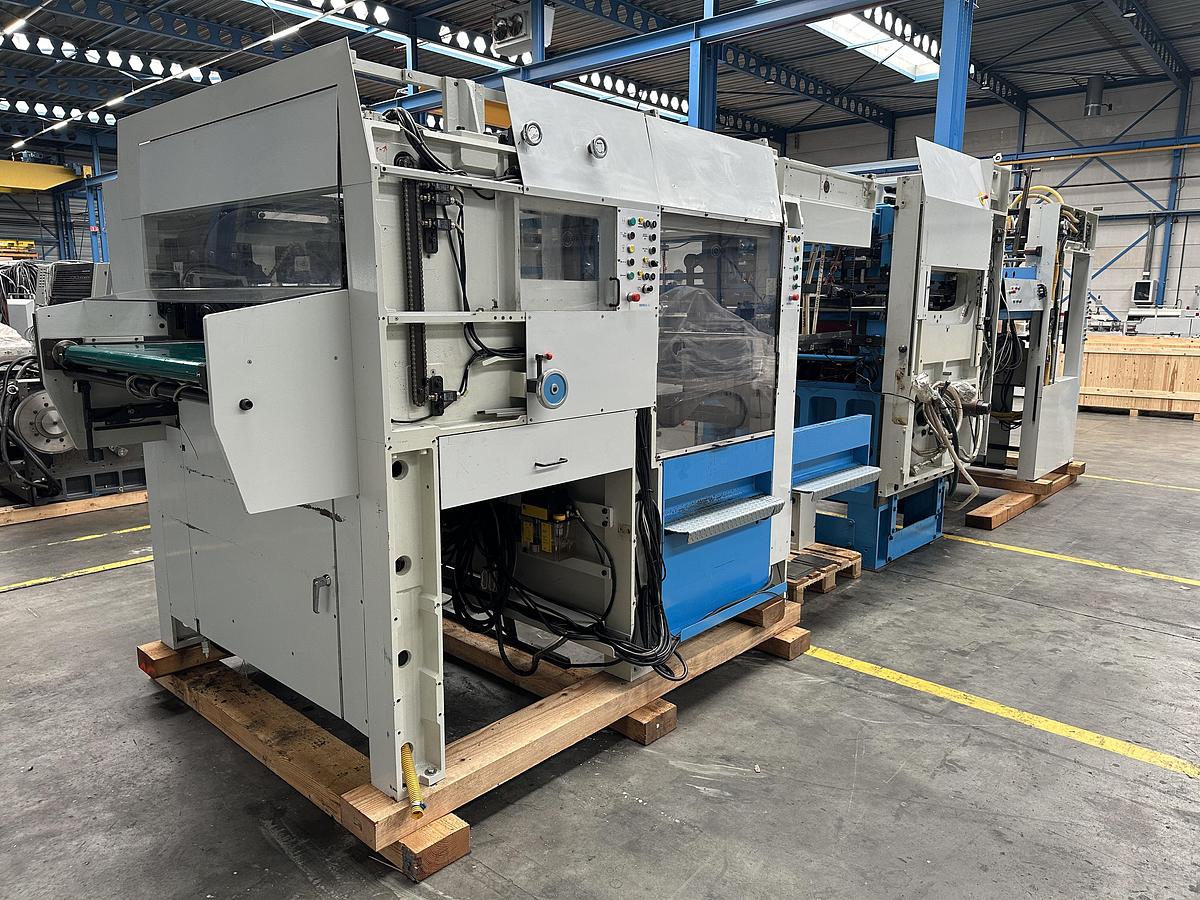

Iberica JRK-105 (2002)

Die-cutter

Iberica JRK-105

Year: 2002

Description:

Stripping unit

Blanking unit

Technical specifications:

Maximum sheet size: 750 x 1050 mm

Minimum sheet size: 350 x 400 mm

Minimum paper thickness (according to quality):90 – 95 g/m2

Maximum cardboard thickness: 1.5 mm

Maximum corrugated board thickness: 3 mm

Maximum operational pressure: 300 T

Maximum speed: 8500 sheets/hour

Main drive motor with variable speed: 20 CV (15 KW)

Total power installed: 43 CV (32 KW)

Air required pressure: 6 KG / CM2

Machine appr. Weight: 23.600 KG

Floor space occupied: length 10.10 M. width 6.26 M. height 3.30 M.
