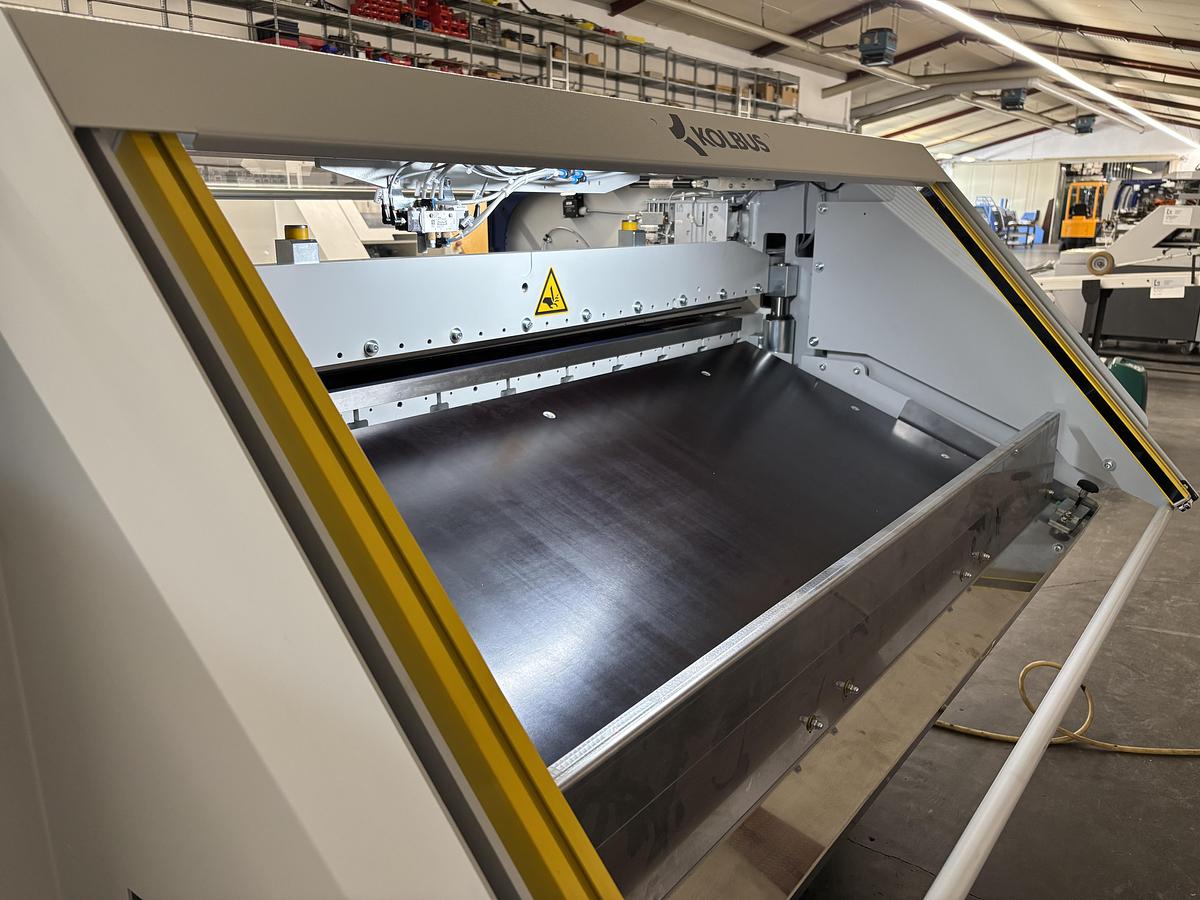

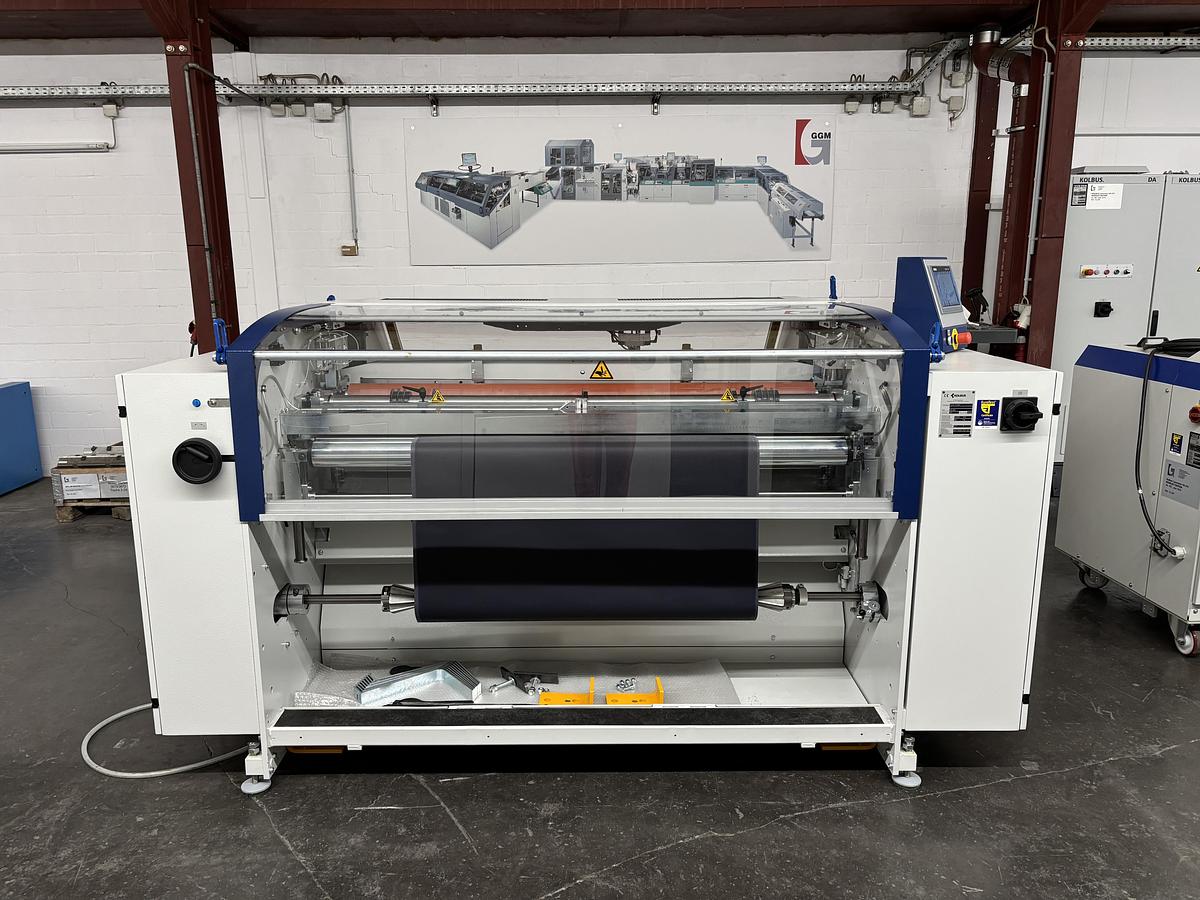

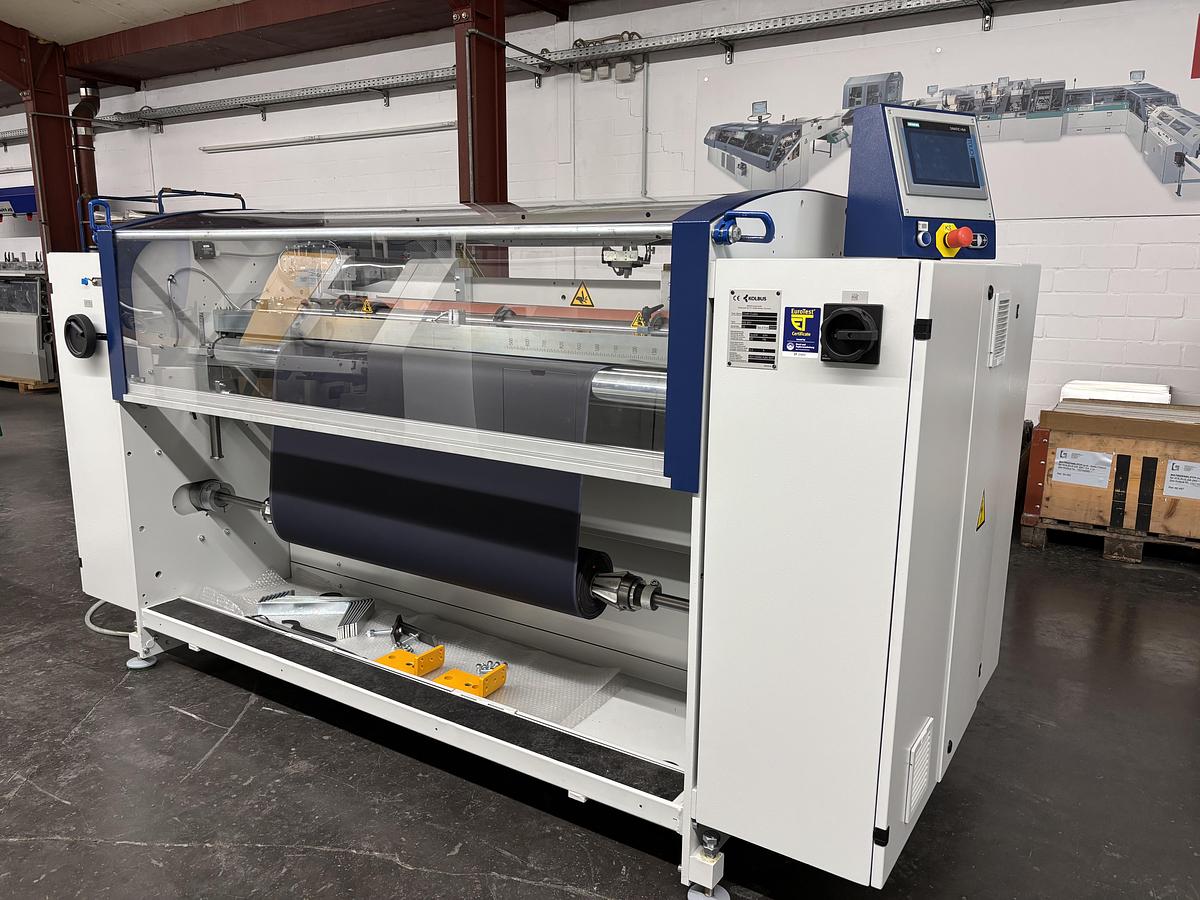

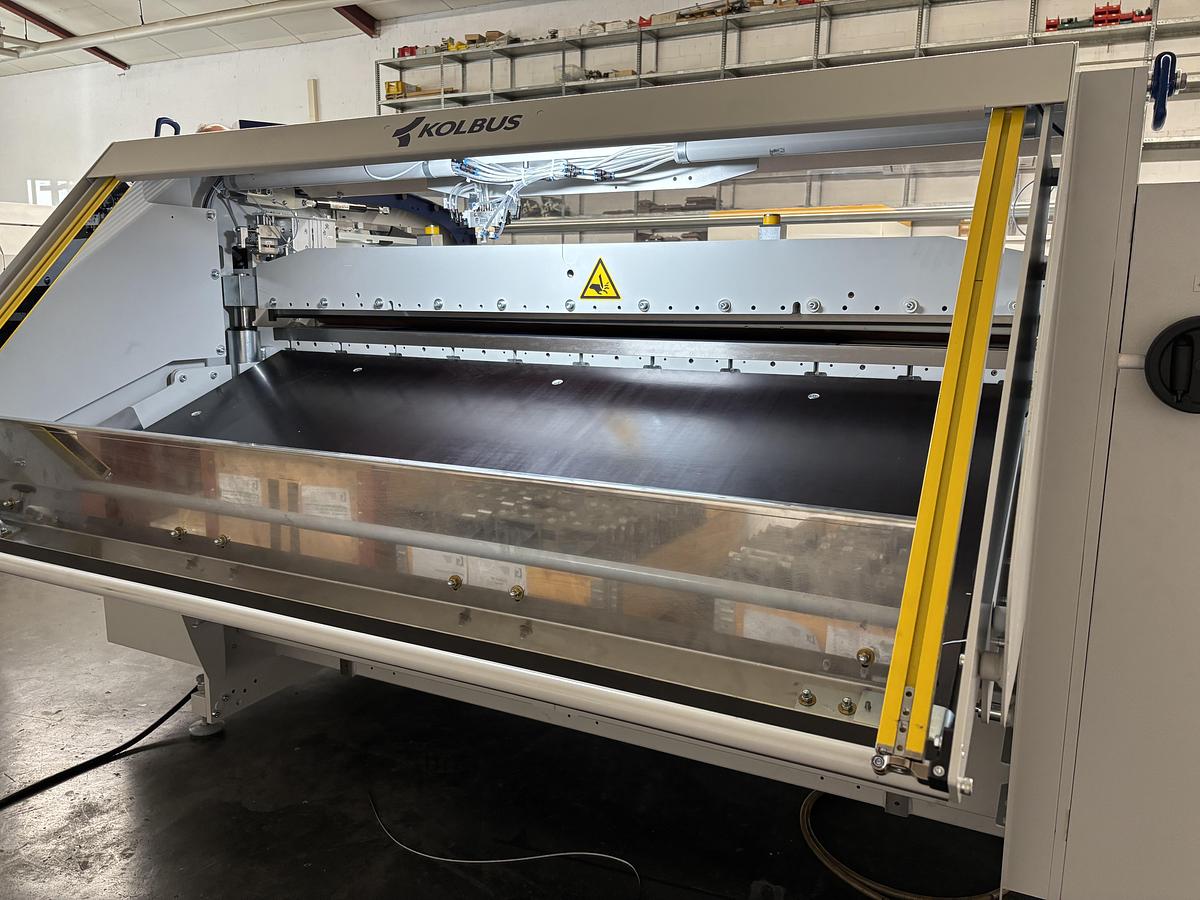

Kolbus cloth cutter KS 601 (2024)

Cloth cutter

Kolbus: KS 601

Year: 2024

Slitting and cross cutting machine for roll material.

Suitable for the processing of calico, linen, leatherette, wax cloth, gauze, shirting, PVC and other similar coated materials.

Standard equipment:

• main drive with servo drive

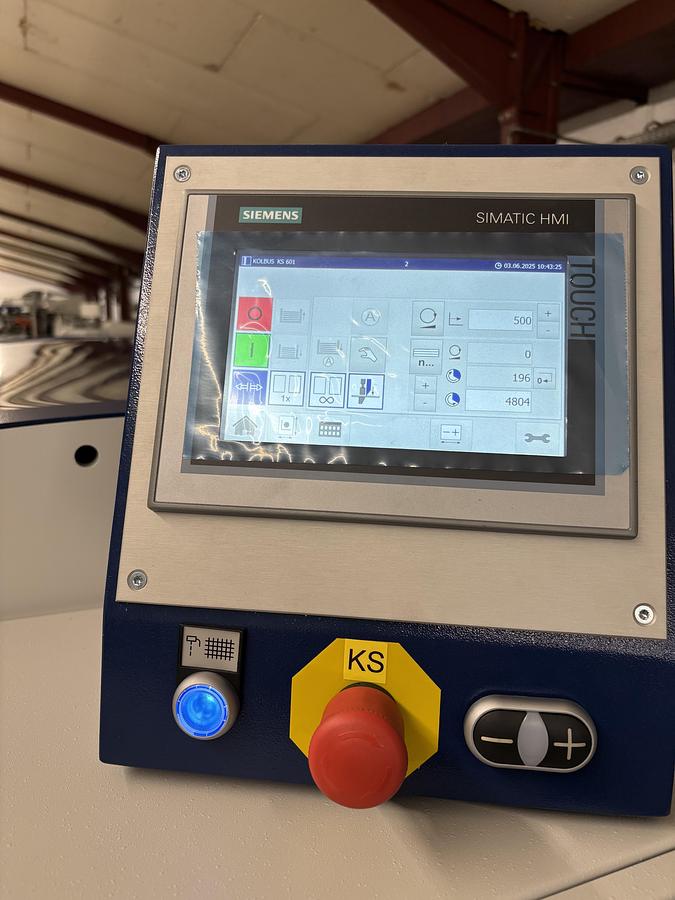

• operating desk for standard and inching operation including speed adjustment

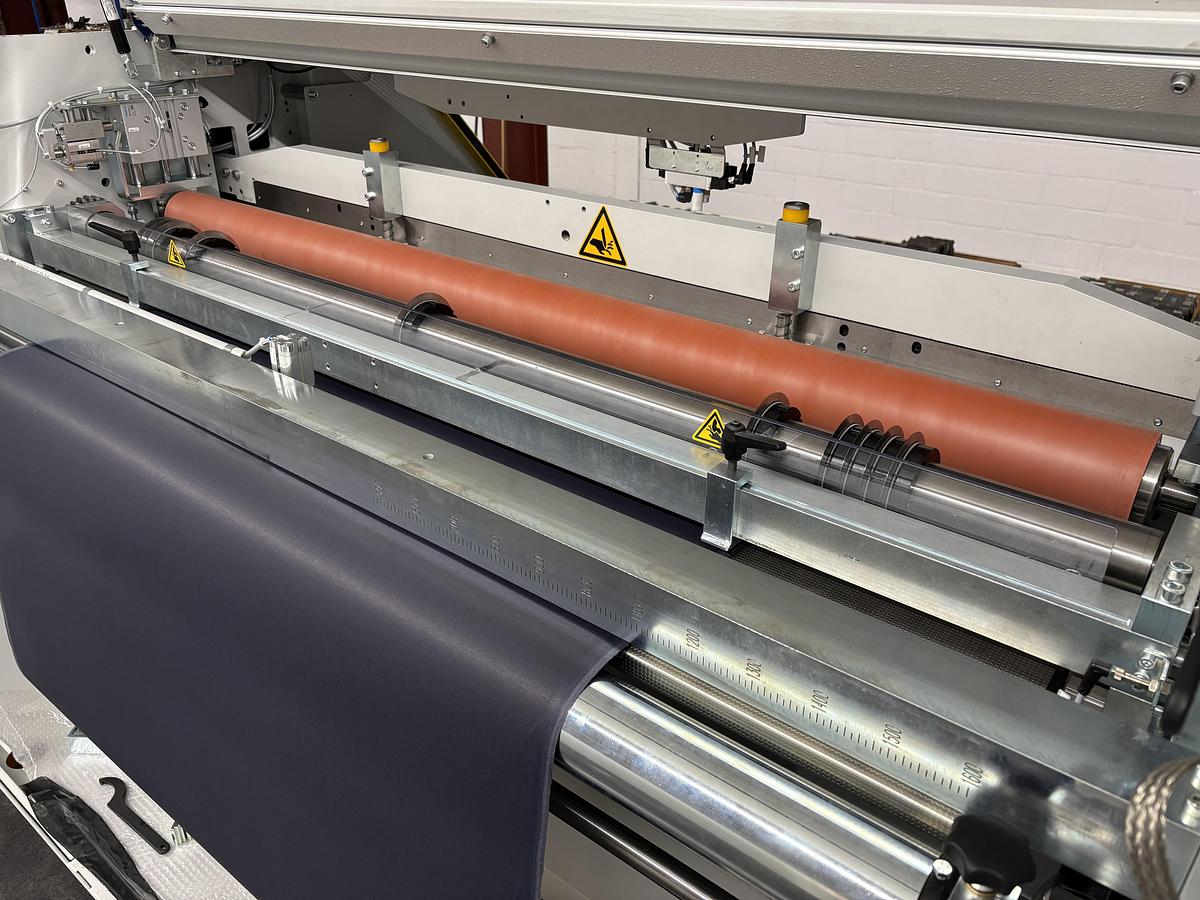

• moveable material mounting shafts

Special equipment:

• cross cutting module and split cutting module with 10 circular knives
• deposit delivery

Technical specifications:

Mechanical speed: up to 50 cuts/min

Material width max.: 1.600 mm

Cutting width max.: 1.524 mm

Cutting width min.: 50 mm

Length of cut max.: 1.100 mm

Length of cut min.: 100 mm
